UB-Lab product family - Versatile ultrasonic profilers

UB-Lab profilers allow accurate velocity profile measurements from the laboratory flume to the industrial process.

Advantages

  • High spatial and temporal resolution
  • Large transducer choice
  • Fine frequency tuning
  • Web interface

The compact and splash-proof enclosures of the UB-Labs are adapted to harsh environments. These scientific instruments can be used within a laboratory as well as in an industrial context (see application for in-line rheometry). They break new ground by offering the user new capabilities in the fields of fluid study and control.

The devices are configured through a responsive web interface profiles can be visualized in real time. They integrate an internal logger which allows the storage of a large amount of data.

The UB-Lab UVPs work in monostatic modus, meaning the same transducer emits bursts and receives the corresponding echoes. This technology is also known as UVP (Ultrasonic Velocity Profiling) or UDV (Ultrasonic Doppler Velocimetry) and provides 1-component velocity profiles (projection on the transducer axis).

When equipped with two transducers, they can be used as a high resolution 2C ADCP.

For instantaneous 2C velocity profiles, see the UB-Lab 3C and its ADVP technology.

Depending on the version, those instruments allow measuring with up to 8 transducers in monostatic modus and are able to drive several transducers in a large frequency range (from 25 kHz to 9.4 MHz). They can therefore be adapted to many kinds of liquids and particles.

They can simultaneously measure velocity and echo amplitude profiles.

They are declined in two groups:

  • the UB-Lab P is a handheld profiler equipped with a Wifi connexion and an internal battery in a compact enclosure with two channels.
  • the UB-Lab S4 can control four channels. Possible to manufacture solutions with more channels on request.

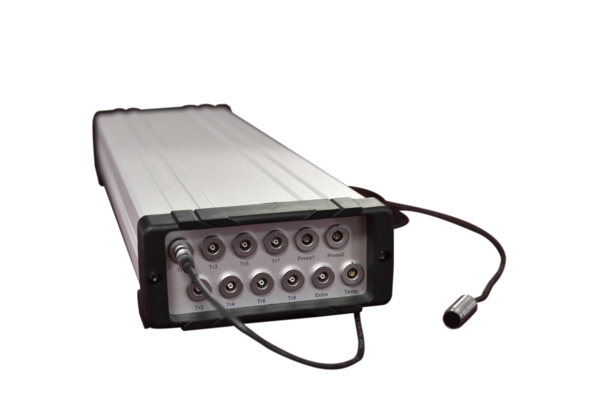

  • the UB-Lab X2 and the UB-Lab X8 can measure with a very high time resolution (up to 100Hz). They have temperature inputs and even pressure inputs for the X8. And both integrate a raw echo signal output. Like the UB-Flow profiler, they give access to the acoustic turbidity which allows the evaluation of Suspended Sediment Concentration (SSC). They are connected through Ethernet and can behave like a DHCP server when connected directly to the computer, or they can be connected to the network and behave like a DHCP client.
  • a UB-Lab starter kit is also available.
Measurement Performances UB-Lab P UB-Lab S4 * UB-Lab X2 UB-Lab X8
Sampling range 0.005 to 4 m
Number of cells 2 to 200
Cell size 0.73 mm to 30 mm 0.36 mm to 10 cm
Velocity Range [-10 to 10] m/s (under Nyquist condition)
Velocity accuracy 0.2 to 1%
Velocity resolution 15 ppm of the velocity range 0.1 ppm of the velocity range
Sampling rates up to 15 Hz ** up to 100 Hz **
Signal Processing Coherent Doppler with phase coding
Number of configurations 8 9
Raw acoustic signal no 1 output channel (lemo connector for FFA.00.250)
Trigger IN/OUT yes (lemo connector for FFA.00.250) yes (BNC connector)
Temperature no 1 BNC connector for 2 wires PT100 probe 1 lemo connector for FGG.00.304 for 4 wires PT100 probe
Pressure no 2 lemo connectors for FGG.00.304 for 4 wires probes (optional)
Acoustics
Measurement modus monostatic
Number of transducer connectors 2 for transducers in emission/reception 4 for transducers in emission/reception 2 for transducers in emission/reception 8 for transducers in emission/reception
Type of transducer connectors lemo for FFA.00.250 BNC lemo for FFA.00.250
Frequency range 0.025 to 3.6MHz 0.8 to 9.4MHz
Beam width 2° to 5° half angle (depending on the transducer and on the emitting frequency)
Emission voltage 50V typical 30/60V (300/450V upon request) 30/60V
Physical
Dimensions 28 x 58 x 210 mm3 174 x 116 x 56 mm3 55 x 113 x 385 mm3
Weight 0.2 kg 0.8 kg 1.5 kg
Data Management
Communication Wifi or Ethernet Ethernet, HTTP and TCP-IP protocols
Internal data logger Up to 1.2Go 3 Go (more than 20 000 profiles)
File format binary data file (.udt) ASCII CSV (compatible with Excel, Matlab …) and binary for raw data
Velocity Velocity profile data (relative to acoustic beam directions) per beam and cell
Echo Backscattered echo RMS amplitude per beam and cell
Turbidity no Acoustic turbidity data per beam and cell
Data Quality Velocity data quality indicator per beam and cell
Raw IQ no yes
Power
Input 5V 110-230V AC, 48V POE
Consumption typical: 2.5 W
max: 7.5 W during charge
autonomy : 4h30
typical: 3.5 W Maximum 12 VA
ON/OFF LED yes with power button yes

* A UB-Lab starter kit is also available. It has the same specifications as the UB-Lab S4, with:

  • only two channels available
  • max 30 cells for each measurement line
  • only at 3MHz emission frequency

** see FAQ - What does the announced sampling rate exactly refer to?
